2008 Frimo DCX-DS

orCall (847) 316-0306

Description

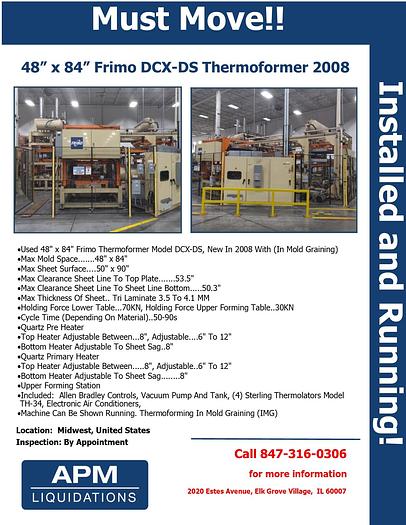

Used 48" x 84" Frimo Thermoformer Model DCX-DS, New In 2008 With (In Mold Graining) Max Mold Space.........................................................................48" x 84" Max Sheet Surface.....................................................................50" x 90" Max Clearance Sheet Line To Top Plate....................................53.5" Max Clearance Sheet Line To Sheet Line Bottom......................50.3" Max Thickness Of Sheet............................................................Tri Laminate 3.5 To 4.1 MM Holding Force Lower Table.........................................................70KN Holding Force Upper Forming Table...........................................30KN Cycle Time (Depending On Material)..........................................50-90s, Typical 60s Motor HP.....................................................................................20HP Voltage........................................................................................460V/3Ph/60Hz Quartz Pre Heater Top Heater Adjustable Between..................................................8" Adjustable....................................................................................6" To 12" Bottom Heater Adjustable To Sheet Sag.....................................8" Quartz Primary Heater Top Heater Adjustable Between..................................................8" Adjustable....................................................................................6" To 12" Bottom Heater Adjustable To Sheet Sag.....................................8" Upper Forming Station Max Weight Plug Assist..............................................................6000 Lbs. Max Upper Platen Stroke...........................................................48" Max Platen Speed......................................................................18"/sec Lower Forming Station Max Weight Vacuum Form Tool.................................................6000 lbs. Max Upper Platen Stroke...........................................................38" Max Platen Speed......................................................................18"/sec Included: Allen Bradley Controls Vacuum Pump And Tank (4) Sterling Thermolators Model TH-34 Electronic Air Conditioners Machine Dimensions: 490" x 470" x 246" Machine Weight: 30,800 Lbs. *Machine Can Be Shown Running. Thermoforming In Mold Graining (IMG)
